Heat Sinks
Model 101/102
5
Models
16–36 A
Load current
HEAT SINK "T-90" + DIN RAIL
16 A
- Surface Area
- 353mm²X56mm = 19768mm³
- Heat sink size
- 43mm(W) X 56mm(L) X 13.5mm(H)
- Weight
- @ 57gms

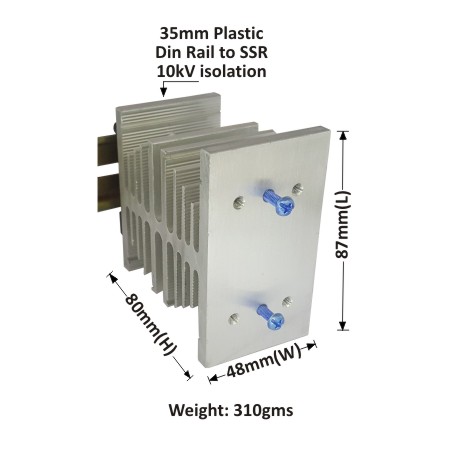

UNI HEAT SINK "B - 48" + DIN RAIL
36 A
- Surface Area
- 2630mm²X48mm = 126240mm³
- Heat sink size
- 48mm(W) X 87mm(L) X 80mm(H)
- Weight
- @ 310gms

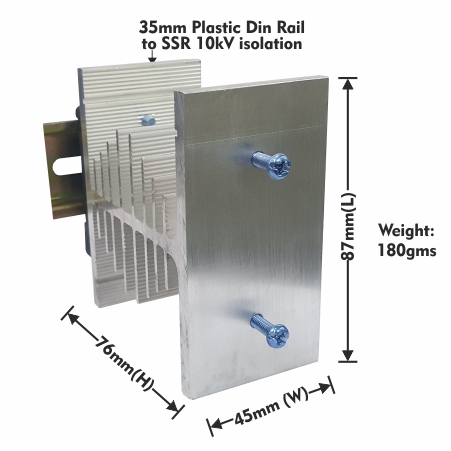

HEAT SINK "T-45" + DIN RAIL
34 A
- Surface Area
- 2630mm²X45mm = 118350mm³
- Heat sink size
- 45mm(W) X 87mm(L) X 76mm(H)
- Weight
- @ 180gms

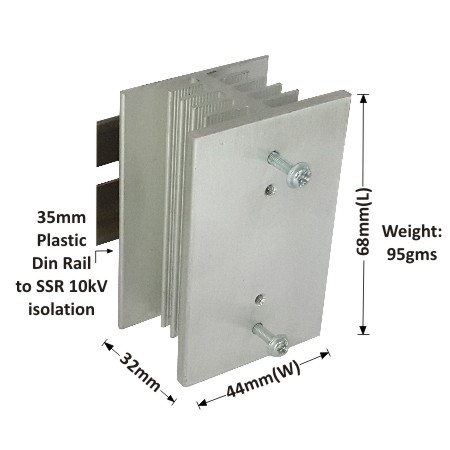

UNI HEAT SINK "G-68" + DIN RAIL
26 A
- Surface Area
- 491mm²X68mm = 33388 mm³
- Heat sink size
- 44mm(W) X 68mm(L) X 32mm(H)
- Weight
- @ 95gms

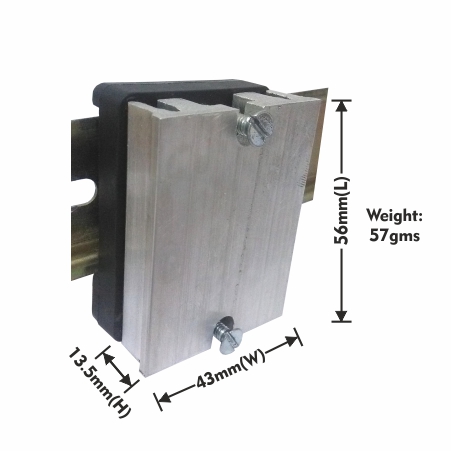

HEAT SINK "C-56" + DIN RAIL
16 A
- Surface Area
- 353mm²X56mm = 19768mm³
- Heat sink size
- 43mm(W) X 56mm(L) X 13.5mm(H)
- Weight
- @ 57gms
