Relays

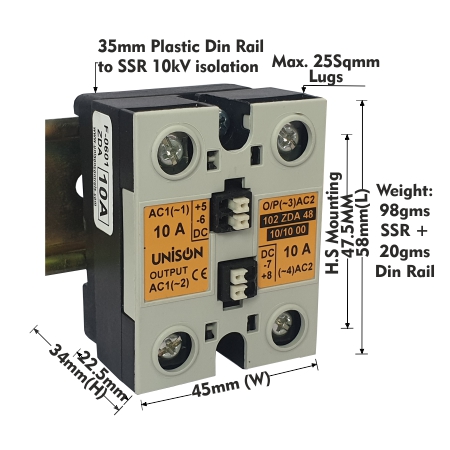

Model 102 Dual Channel
Two channels, one compact footprint.
10–50 A
Load current
1
Series
5
Models
Choose your switching
Choose Your Switching.
Every Model 102 Dual Channel type side by side, from Unison's own specifications.
| Type | Input | Output | Current | Best for |
|---|---|---|---|---|
| Zero-cross | 4-32VDC/4-16mA | 24-480(47-63 Hz), 10Amp | 10–50 A | Resistive heating |
The range
1 Series, 5 Models.
Rated with every heat sink
Know the Current Before You Build.
Load current at 40 °C for UNI 102 ZDA 48 10/10 00 + DIN RAIL, from Unison's derating tables.
Find Your Heat Sink →DIN RAIL ONLYLoad 1: 5 A / Load 2: 5 A
(5 A / phase across 2 phases)
C-56Load 1: 6 A / Load 2: 6 A
(6 A / phase across 2 phases)
G-68Load 1: 8 A / Load 2: 8 A
(8 A / phase across 2 phases)
| Heat Sink / Mounting | Rated Load Current @ 40 °C |
|---|---|
| DIN RAIL ONLY | Load 1: 5 A / Load 2: 5 A |
| C-56 | Load 1: 6 A / Load 2: 6 A |
| G-68 | Load 1: 8 A / Load 2: 8 A |
