Relays
Model 108
A 30 mm format for AC and DC loads.
12–40 A
Load current
2
Series
3
Models
Choose your switching
Choose Your Switching.
Every Model 108 type side by side, from Unison's own specifications.
| Type | Input | Output | Current | Best for |
|---|---|---|---|---|

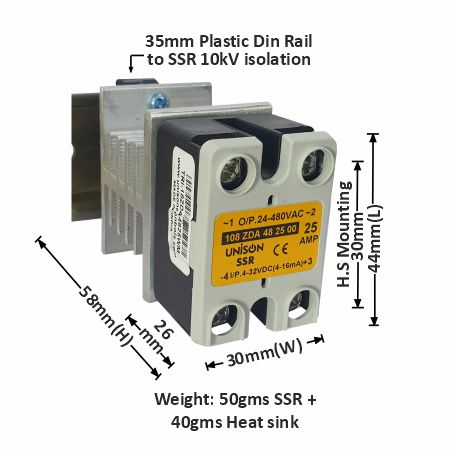

| Zero-cross | 4-32VDC/4-16mA | 24-480(47-63 Hz), 25 Amp | 25–40 A | Resistive heating |
| MOSFET | 3-32 VDC, 4-20mA | 5-200VDC, 12 Amp | 12 A | DC loads |
Rated with every heat sink
Know the Current Before You Build.
Load current at 40 °C for UNI 108 ZDA 48 25 00 + G-30 HEAT SINK + DIN RAIL, from Unison's derating tables.
Find Your Heat Sink →G-3015 Amp
| Heat Sink / Mounting | Rated Load Current @ 40 °C |
|---|---|
| G-30 | 15 Amp |
