Controllers
Temperature Controllers

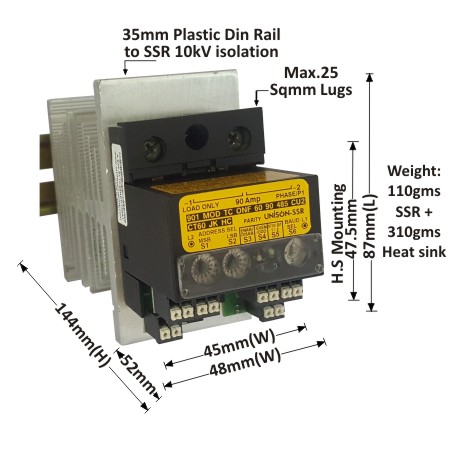

An SSR with a temperature controller built in, over Modbus.
90–200 A
Load current
2
Series
4
Models
Choose your switching
Choose Your Switching.
Every Temperature Controllers type side by side, from Unison's own specifications.
| Type | Input | Output | Current | Best for |
|---|---|---|---|---|
| Standard | — | AC | 90–200 A | — |
Rated with every heat sink
Know the Current Before You Build.

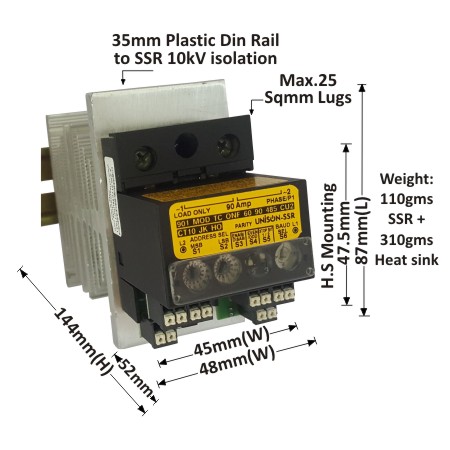

Load current at 40 °C for UNI 901 MOD TC ONF 60 90 485 CU2 CT60 JK HO, from Unison's derating tables.
Find Your Heat Sink →B-4836 Amp
B-7260 Amp
A-10065 Amp
A-190 Heat Sink without Fan36 A x 3 = 108 Amp
(36 A / phase across 3 phases)
A-190 Heat Sink with Fan40 A x 3 = 120 Amp
(40 A / phase across 3 phases)
| Heat Sink / Mounting | Rated Load Current @ 40 °C |
|---|---|
| B-48 | 36 Amp |
| B-72 | 60 Amp |
| A-100 | 65 Amp |
| A-190 Heat Sink without Fan | 36 A x 3 = 108 Amp |
| A-190 Heat Sink with Fan | 40 A x 3 = 120 Amp |
