Heat Sinks
Model 803
6
Models
22–80 A
Load current
HEAT SINK "T-67.5" + DIN RAIL
54 A
- Surface Area
- 2630mm²X67.5mm = 177525mm³
- Heat sink size
- 67.5mm(W) X 87mm(L) X 76mm(H)
- Weight
- @ 280gms

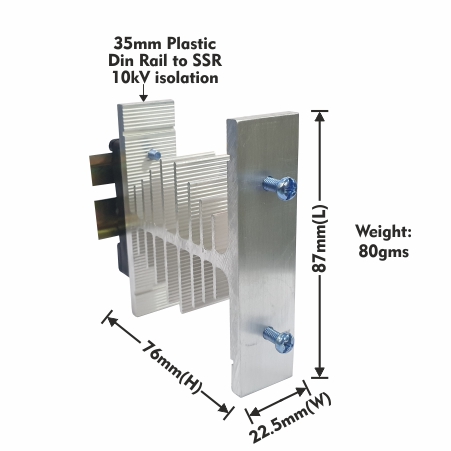

HEAT SINK "T-22.5" + DIN RAIL
28 A
- Surface Area
- 2630mm²X22.5mm = 59175mm³
- Heat sink size
- 22.5mm(W) X 87mm(L) X 76mm(H)
- Weight
- @ 80gms

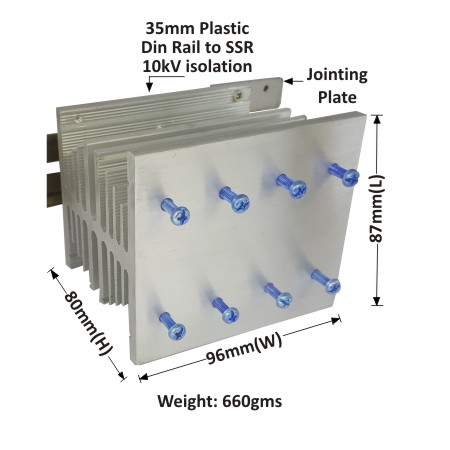

UNI HEAT SINK "B-96" + DIN RAIL
80 A
- Surface Area
- 2630mm²X96mm = 252480mm³
- Heat sink size
- 96mm(W) X 87mm(L) X 80mm(H)
- Weight
- @ 660gms

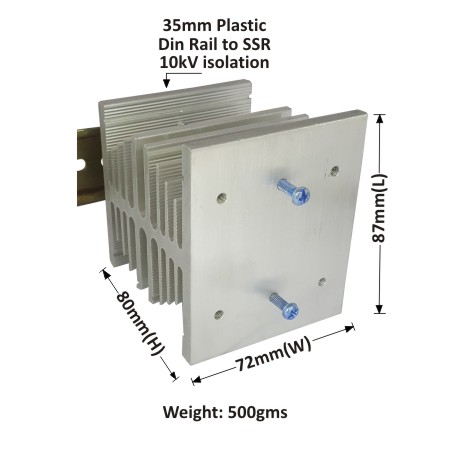

UNI HEAT SINK "B-72" + DIN RAIL
60 A
- Surface Area
- 2630mm²X72mm = 189360mm³
- Heat sink size
- 72mm(W) X 87mm(L) X 80mm(H)
- Weight
- @ 500gms

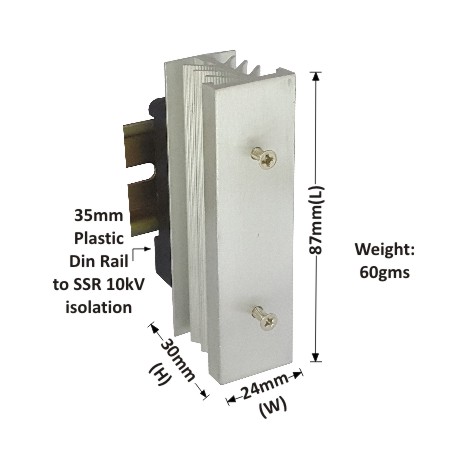

UNI HEAT SINK "V-87" + DIN
22 A
- Surface Area
- 248mm²X87mm = 21576mm³
- Heat sink size
- 24mm(W) X 87mm(L) X 30mm(H)
- Weight
- @ 60gms

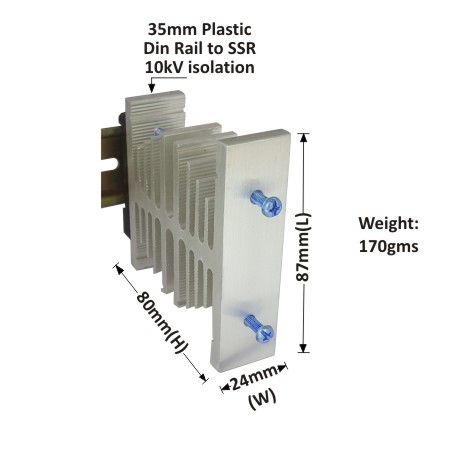

UNI HEAT SINK "B-24" + DIN RAIL
30 A
- Surface Area
- 2630mm²X24mm = 63120mm³
- Heat sink size
- 24mm(W) X 87mm(L) X 80mm(H)
- Weight
- @ 170gms
