Heat Sinks
Model 901
4
Models
80–240 A
Load current
UNI HEAT SINK "A-190" WITH FAN
156 A
- Surface Area
- 2630mm²X190mm = 499700mm³
- Heat sink size
- 190mm(W) X 87mm(L) X 80mm(H)
- Weight
- @ 1530gms

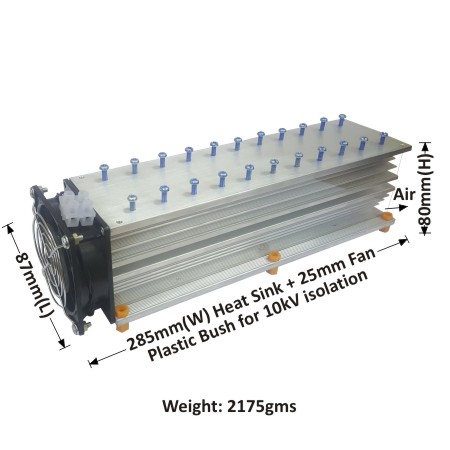

UNI HEAT SINK "A-285" WITH FAN
240 A
- Surface Area
- 2630mm²X285mm = 749550mm³
- Heat sink size
- 285mm(W) X 87mm(L) X 80mm(H)
- Weight
- @ 2175gms

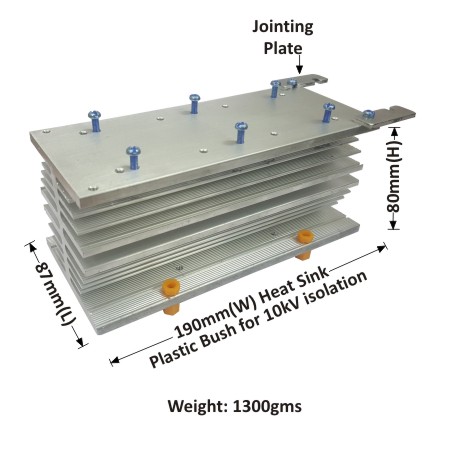

UNI HEAT SINK "A-190" WITHOUT FAN
132 A
- Surface Area
- 2630mm²X190mm = 499700mm³
- Heat sink size
- 190mm(W) X 87mm(L) X 80mm(H)
- Weight
- @ 1300gms

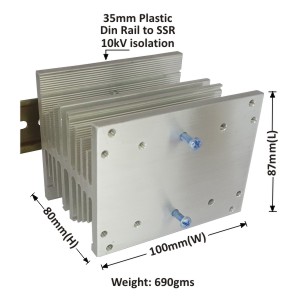

UNI HEAT SINK "A-100" + DIN RAIL
80 A
- Surface Area
- 2630mm²X100mm = 263000mm³
- Heat sink size
- 100mm(W) X 87mm(L) X 80mm(H)
- Weight
- @ 690gms
