Interface Cards
DC to AC Interface Relay Card
- Models
- 4
- Load current
- 5 A
5 A
- Output
- 24-480VAC (47-63 Hz), 5 Amp (02CH)
- Polarity Free Input
- 4-32VDC/4-16mA
- I/P. to O/P. insulation
- 3kV for 1min

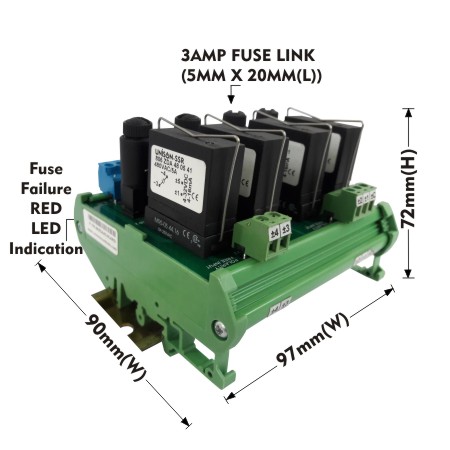

5 A
- Output
- 24-480VAC (47-63 Hz), 5 Amp (04CH)
- Polarity Free Input
- 4-32VDC/4-16mA
- I/P. to O/P. insulation
- 3kV for 1min

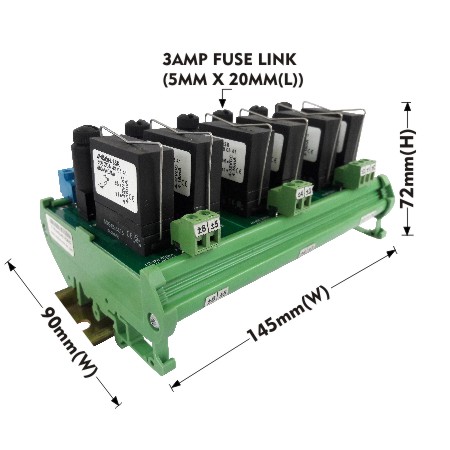

5 A
- Output
- 24-480VAC (47-63 Hz), 5 Amp (06CH)
- Polarity Free Input
- 4-32VDC/4-16mA
- I/P. to O/P. insulation
- 3kV for 1min

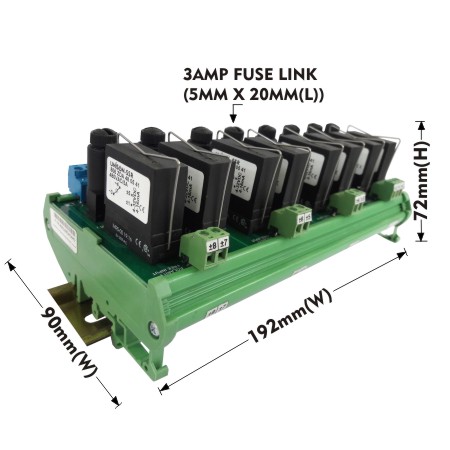

5 A
- Output
- 24-480VAC (47-63 Hz), 5 Amp (08CH)
- Polarity Free Input
- 4-32VDC/4-16mA
- I/P. to O/P. insulation
- 3kV for 1min
