Interface Cards

DC to DC Interface Relay Card

Models: 4
Load current: 5 A

Unison Interface Cards

UNI 806 PMDD 100 05 41 - 2CH CARD
5 A · MOSFET
Output
5-100VDC, 5Amp. N/O Configuration only
Polarity Free Input
4-32VDC/4-16mA
Turn ON time
2.5 mS / Turn OFF time : 40 μS
View specifications

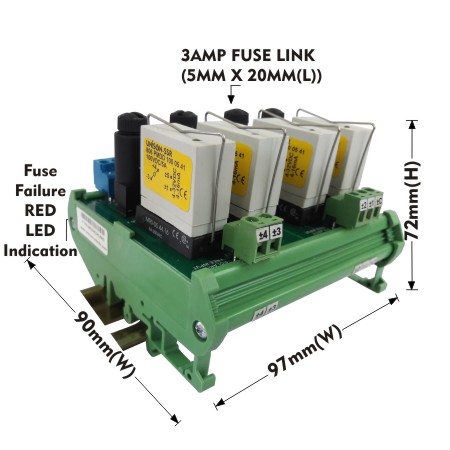

UNI 806 PMDD 100 05 41 - 4CH CARD
5 A · MOSFET
Output
5-100VDC, 5Amp. N/O Configuration only
Polarity Free Input
4-32VDC/4-16mA
Turn ON time
2.5 mS / Turn OFF time : 40 μS
View specifications

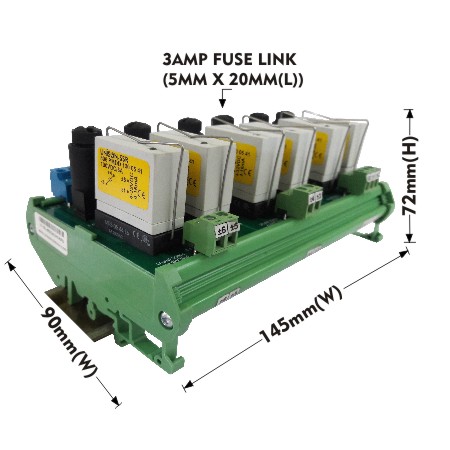

UNI 806 PMDD 100 05 41 - 6CH CARD
5 A · MOSFET
Output
5-100VDC, 5Amp. N/O Configuration only
Polarity Free Input
4-32VDC/4-16mA
Turn ON time
2.5 mS / Turn OFF time : 40 μS
View specifications

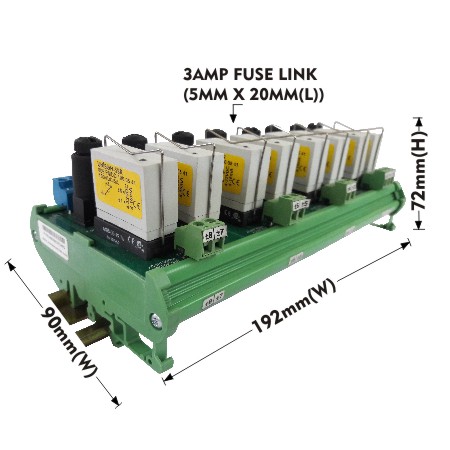

UNI 806 PMDD 100 05 41 - 8CH CARD
5 A · MOSFET
Output
5-100VDC, 5Amp. N/O Configuration only
Polarity Free Input
4-32VDC/4-16mA
Turn ON time
2.5 mS / Turn OFF time : 40 μS
View specifications
