Model 101
Zero-cross Solid State Relay
5
Models
10–50 A
Load current
UNI 101 ZDA 48 10 00 AL5 + DIN RAIL
10 A · Zero-cross
- Input
- 4-32VDC/4-16mA
- Output
- 24-480(47-63 Hz), 10Amp
- PIV
- 800, I²T : 32A²S for 9.6mS

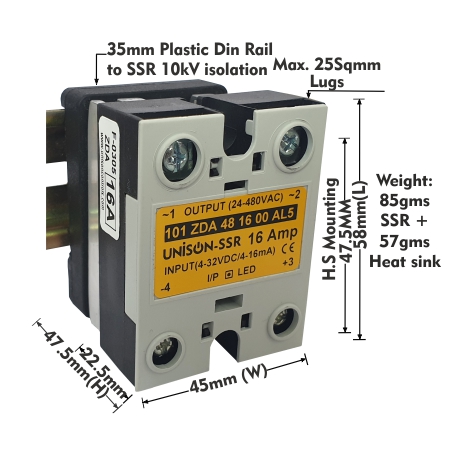

UNI 101 ZDA 48 16 00 AL5 + C-56 HEAT SINK + DIN RAIL
16 A · Zero-cross
- Input
- 4-32VDC/4-16mA
- Output
- 24-480(47-63 Hz), 16Amp
- PIV
- 800, I²T : 128A²S for 9.6mS

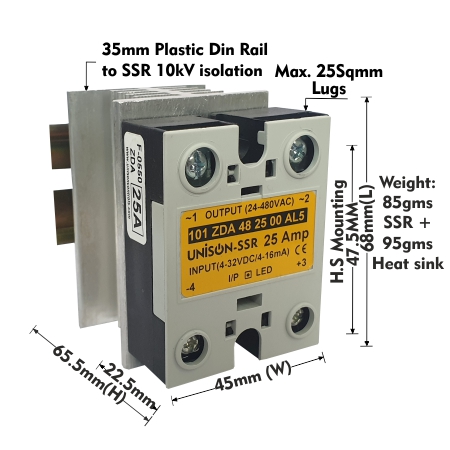

UNI 101 ZDA 48 25 00 AL5 + G-68 HEAT SINK + DIN RAIL
25 A · Zero-cross
- Input
- 4-32VDC/4-16mA
- Output
- 24-480(47-63 Hz), 25Amp
- PIV
- 800, I²T : 450A²S for 9.6mS

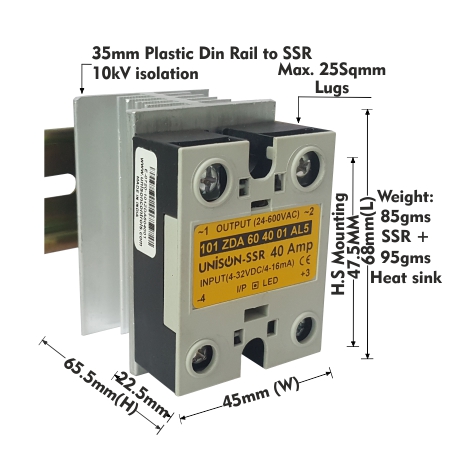

UNI 101 ZDA 60 40 01 AL5 + G-68 HEAT SINK + DIN RAIL
40 A · Zero-cross
- Input
- 4-32VDC/4-16mA, Input Green LED Indication
- Output
- 24-480(47-63 Hz), 40Amp
- PIV
- 1600, I²T : 1060A²S for 9.6mS

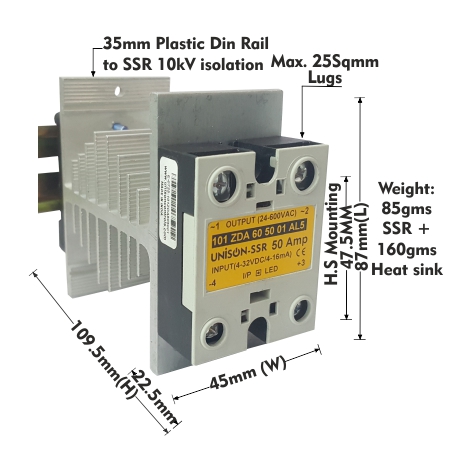

UNI 101 ZDA 60 50 01 AL5 + T-45 HEAT SINK + DIN RAIL
50 A · Zero-cross
- Input
- 4-32VDC/4-16mA, Input Green LED Indication
- Output
- 24-480(47-63 Hz), 50Amp
- PIV
- 1600, I²T : 3000A²S for 9.6mS
