Model 108
Zero-cross DC to AC Solid State Relay
2
Models
25–40 A
Load current
UNI 108 ZDA 48 25 00 + G-30 HEAT SINK + DIN RAIL
25 A · Zero-cross
- Input
- 4-32VDC/4-16mA
- Output
- 24-480(47-63 Hz), 25 Amp
- PIV
- 1600, I²T : 1060A²S for 9.6mS

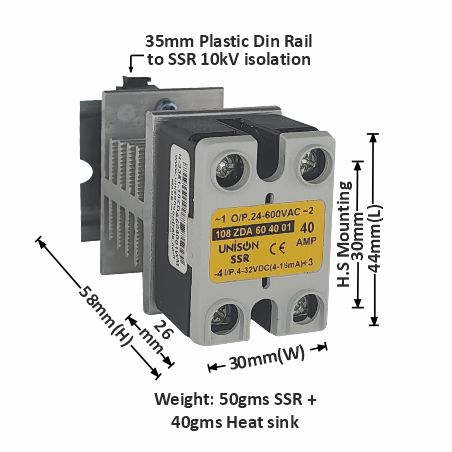

UNI 108 ZDA 60 40 01 + G-30 HEAT SINK + DIN RAIL
40 A · Zero-cross
- Input
- 4-32VDC/4-16mA
- Output
- 24-600(47-63 Hz), 40Amp
- PIV
- 1600, I²T : 1060A²S for 9.6mS
