Model 803 Slim
Slim Analog Phase Angle Control Solid State Relay
4
Models
25–200 A
Load current
UNI 803 PHT 24 200 420 + A-100 HEAT SINK + DIN RAIL
200 A · Phase angle
- Input
- 4 to 20mA or 0-10VDC
- Output
- 230VAC/440VAC (47-63 Hz), 200 Amp
- PIV
- 1200Vpk, I²T : 25000A²S for 9.6mS

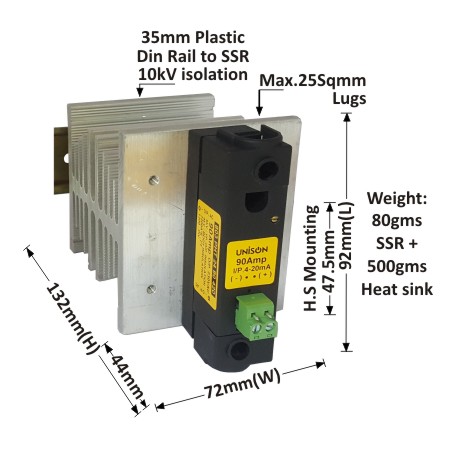

UNI 803 PHT 24 90 420 + B-72 HEAT SINK + DIN RAIL
90 A · Phase angle
- Input
- 4 to 20mA or 0-10VDC
- Output
- 230VAC/440VAC (47-63 Hz), 90 Amp
- PIV
- 1200Vpk, I²T : 7200A²S for 9.6mS

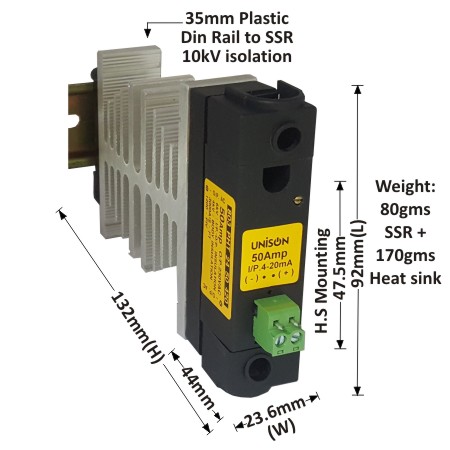

UNI 803 PHT 24 50 420 + B-24 HEAT SINK + DIN RAIL
50 A · Phase angle
- Input
- 4 to 20mA/<100E or 0-10 VDC/560 Ω
- Output
- 230VAC or 440VAC (47-63 Hz), 50 Amp
- PIV
- 1200Vpk, I²T : 3000A²S for 9.6mS

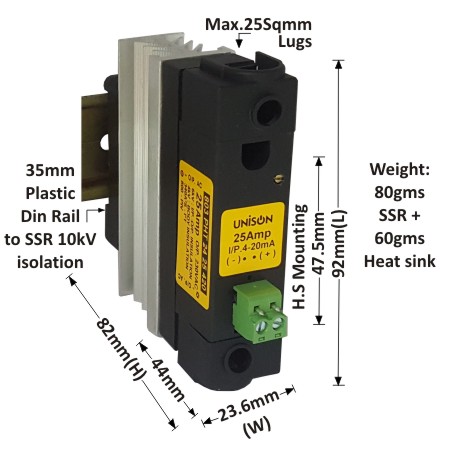

UNI 803 PHT 24 25 420 + V-87 HEAT SINK + DIN RAIL
25 A · Phase angle
- Input
- 4 to 20mA. Separate order for 0-10VDC
- Output
- 230VAC or 440VAC (47-63 Hz), 25 Amp
- PIV
- 800Vpk, I²T : 340A²S for 9.6mS
