Model 803 Slim
Slim MOSFET DC to DC Solid State Relay
4
Models
15–50 A
Load current
UNI 803 PMDD 30 50 00 + B-24 HEAT SINK + DIN RAIL
50 A · MOSFET
- Input
- 4-32 VDC, 9-32mA, RED LED Indication
- Output
- 5-30VDC, 50Amp
- Body insulation
- 2.5kV for 1min

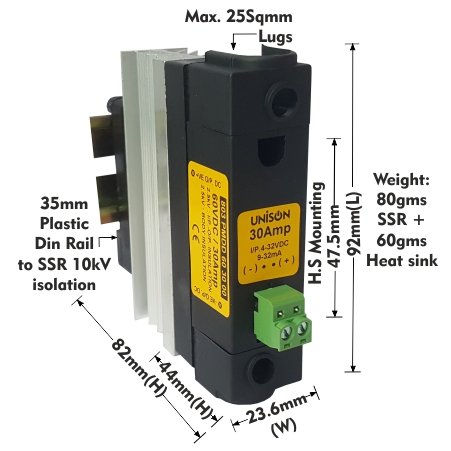

UNI 803 PMDD 60 30 00 + V-87 HEAT SINK + DIN RAIL
30 A · MOSFET
- Input
- 4-32 VDC, 9-32mA, RED LED Indication
- Output
- 5-60VDC, 30Amp
- Body insulation
- 2.5kV for 1min
UNI 803 PMDD 200 20 00 + V-87 HEAT SINK + DIN RAIL
20 A · MOSFET
- Input
- 4-32 VDC, 9-32mA, RED LED Indication
- Output
- 5-200VDC, 20Amp
- Body insulation
- 2.5kV for 1min
UNI 803 PMDD 150 15 00 + V-87 HEAT SINK + DIN RAIL
15 A · MOSFET
- Input
- 4-32 VDC, 4-20mA, RED LED Indication
- Output
- 5-150VDC, 15Amp
- Body insulation
- 4kV for 1min
