Model 803 Slim · UL approved
Slim Random DC to AC Solid State Relay
4
Models
25–90 A
Load current
UNI 803 RDA 58 50 01 + B-24 HEAT SINK + DIN RAIL
50 A · Random
- Input
- 4-32VDC/4-16mA, Input RED LED Indication
- Output
- 24-580VAC (47-63 Hz), 50 Amp
- PIV
- 1400, I²T : 3000A²S for 9.6mS

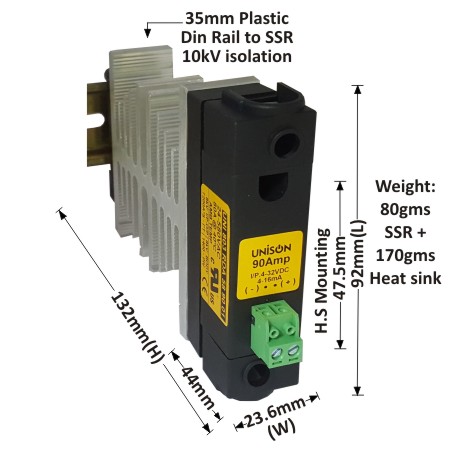

UNI 803 RDA 58 90 01 + B-24 HEAT SINK + DIN RAIL
90 A · Random
- Input
- 4-32VDC/4-16mA
- Output
- 24-580(47-63 Hz), 90 Amp
- PIV
- 1400, I²T : 7200A²S for 9.6mS

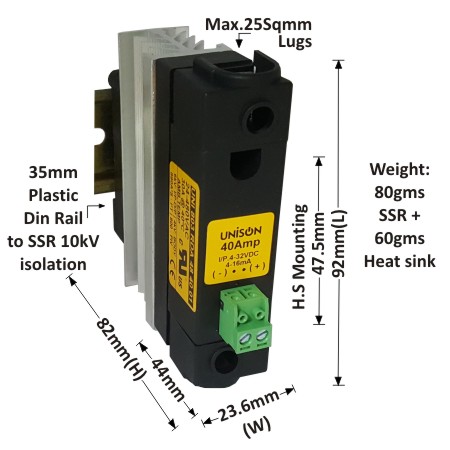

UNI 803 RDA 48 40 01 + V-87 HEAT SINK + DIN RAIL
40 A · Random
- Input
- 4-32VDC/4-16mA
- Output
- 24-480(47-63 Hz), 40 Amp
- PIV
- 800, I²T : 880A²S for 9.6mS

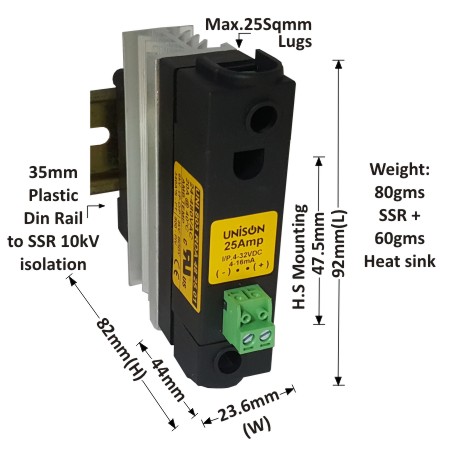

UNI 803 RDA 48 25 01 + V-87 HEAT SINK + DIN RAIL
25 A · Random
- Input
- 4-32VDC/4-16mA
- Output
- 24-480(47-63 Hz), 25 Amp
- PIV
- 800, I²T : 340A²S for 9.6mS
