Model 803 Slim
Zero-cross Slim AC to AC Solid State Relay
4
Models
25–90 A
Load current
UNI 803 ZAA 48 25 28 + V-87 HEAT SINK + DIN RAIL
25 A · Zero-cross
- Input
- 100-280VAC/4-12mA,
- Output
- 24-480(47-63 Hz), 25 Amp
- PIV
- 800, I²T : 340A²S for 9.6mS

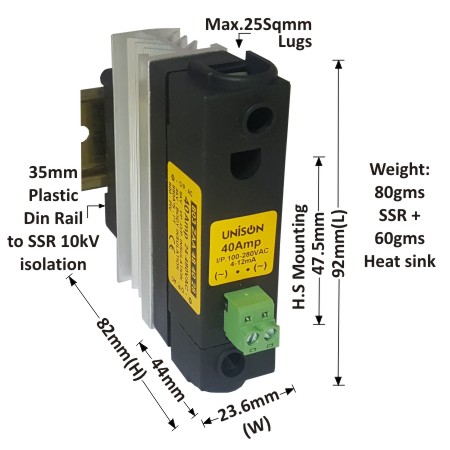

UNI 803 ZAA 48 40 28 + V-87 HEAT SINK + DIN RAIL
40 A · Zero-cross
- Input
- 100-280VAC/4-12mA
- Output
- 24-480(47-63 Hz), 40 Amp
- PIV
- 800, I²T : 880A²S for 9.6mS

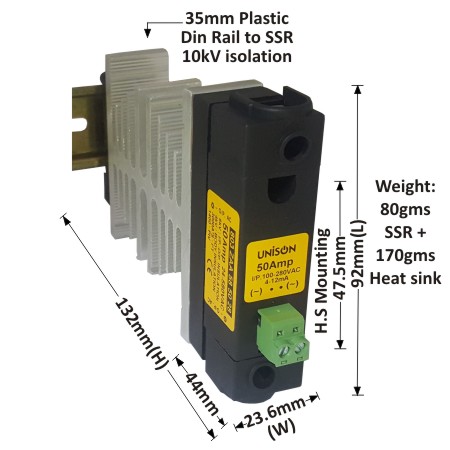

UNI 803 ZAA 58 50 28 + B-24 HEAT SINK + DIN RAIL
50 A · Zero-cross
- Input
- 100-280VAC/4-12mA, RED LED Indication
- Output
- 24-580(47-63 Hz), 50 Amp
- PIV
- 1400, I²T : 3000A²S for 9.6mS

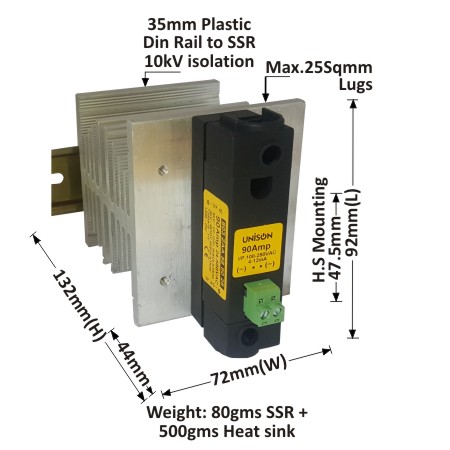

UNI 803 ZAA 58 90 28 + B-72 HEAT SINK + DIN RAIL
90 A · Zero-cross
- Input
- 100-280VAC/4-12mA
- Output
- 24-580(47-63 Hz), 90 Amp
- PIV
- 1400, I²T : 7200A²S for 9.6mS
