Model 803 Slim
Zero-cross Slim DC to AC Solid State Relay
7
Models
25–200 A
Load current
UNI 803 ZDA 48 25 01 + V-87 HEAT SINK + DIN RAIL
25 A · Zero-cross
- Input
- 4-32VDC/4-16mA
- Output
- 24-480VAC(47-63 Hz), 25 Amp
- PIV
- 800, I²T : 340A²S for 9.6mS

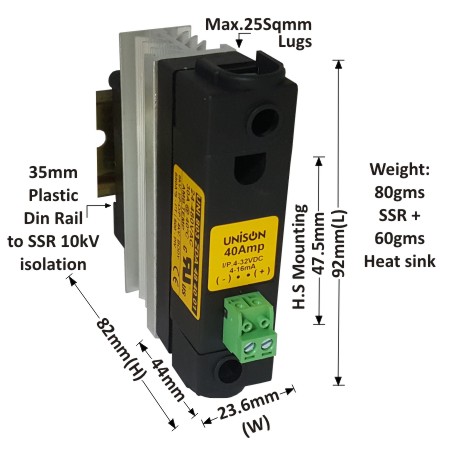

UNI 803 ZDA 48 40 01 + V-87 HEAT SINK + DIN RAIL
40 A · Zero-cross
- Input
- 4-32VDC/4-16mA
- Output
- 24-480VAC(47-63 Hz), 40 Amp
- PIV
- 800, I²T : 880A²S for 9.6mS

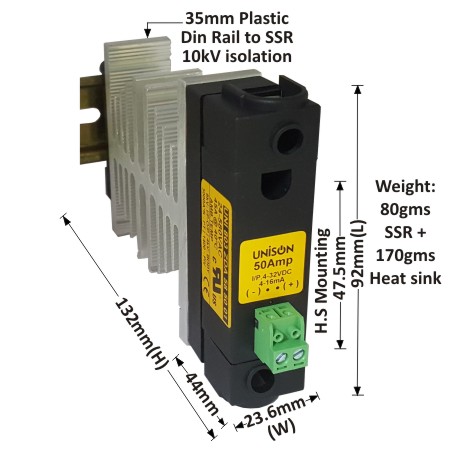

UNI 803 ZDA 58 50 01 + B-24 HEAT SINK + DIN RAIL
50 A · Zero-cross
- Input
- 4-32VDC / 4-16mA, RED LED Indication
- Output
- 24-580VAC(47-63 Hz), 50 Amp
- PIV
- 1400, I²T : 3000A²S for 9.6mS

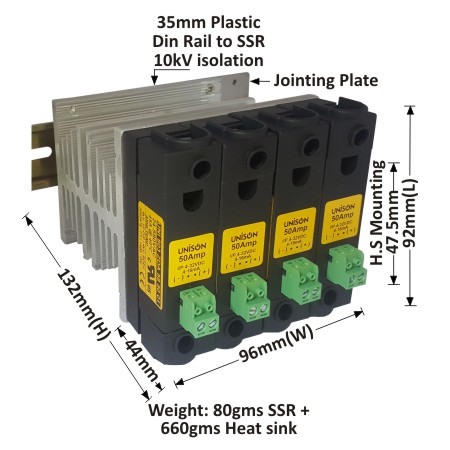

UNI 803 ZDA 58 50 01 - 4 NOS. SSR + B-96 HEAT SINK + DIN RAIL
50 A · Zero-cross
- Input
- 4-32VDC / 4-16mA, RED LED Indication
- Output
- 24-580VAC(47-63 Hz), 50 Amp
- PIV
- 1400, I²T : 3000A²S for 9.6mS

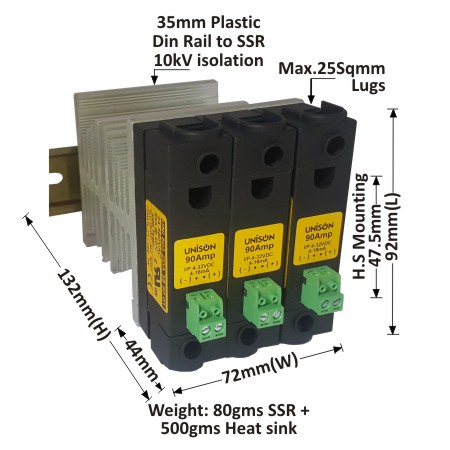

UNI 803 ZDA 58 90 01 - 3 NOS. SSR + B72 HEAT SINK + DIN RAIL
90 A · Zero-cross
- Input
- 4-32VDC / 4-16mA, RED LED Indication
- Output
- 24-580VAC(47-63 Hz), 90 Amp
- PIV
- 1400, I²T : 7200A²S for 9.6mS

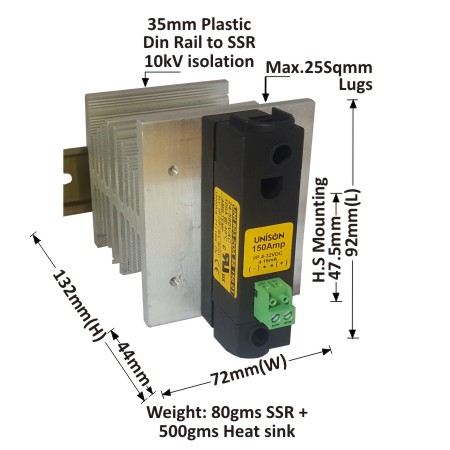

UNI 803 ZDA 58 150 01 + B72 HEAT SINK + DIN RAIL
150 A · Zero-cross
- Input
- 4-32VDC / 4-16mA, RED LED Indication
- Output
- 24-580VAC(47-63 Hz), 150 Amp
- PIV
- 1400, I²T : 15000A²S for 9.6mS

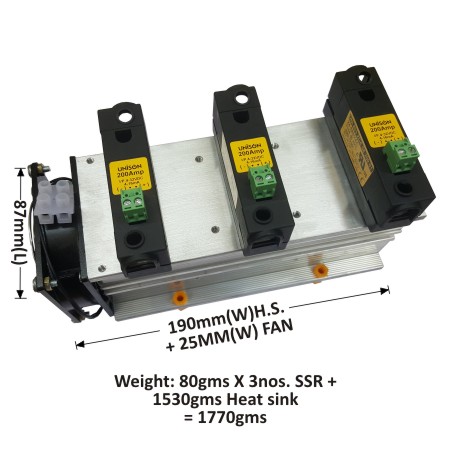

UNI 803 ZDA 58 200 01 - 3 NOS. SSR + A190 HEAT SINK WITH FAN
200 A · Zero-cross
- Input
- 4-32VDC / 4-16mA, RED LED Indication
- Output
- 24-580VAC(47-63 Hz), 200 Amp
- PIV
- 1400, I²T : 25000A²S for 9.6mS
