Model 901

IGBT DC to DC Solid State Relay

4

Models

10–20 A

Load current

UNI 901 IGDD 600 10 00 + G-68 HEAT SINK + DIN RAIL
10 A · MOSFET
Input
4-32 VDC, 9-32mA
Output
5-600VDC, 10Amp
Body insulation
2.5kV for 1min
View specifications →

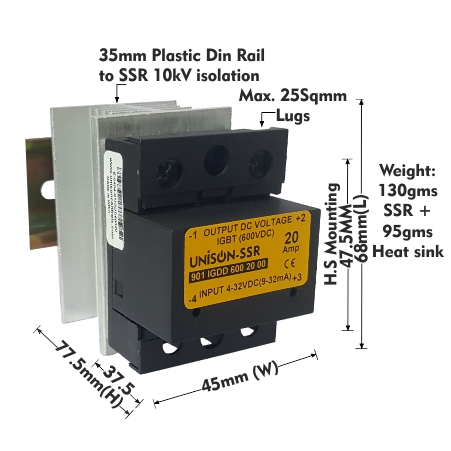

UNI 901 IGDD 600 20 00 + G-68 HEAT SINK + DIN RAIL
20 A · MOSFET
Input
4-32 VDC, 9-32mA
Output
5-600VDC, 20Amp
Body insulation
2.5kV for 1min
View specifications →

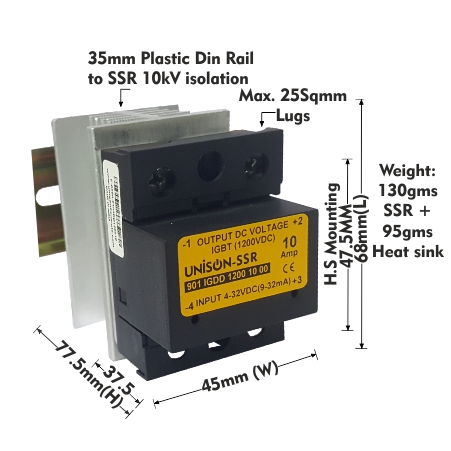

UNI 901 IGDD 1200 10 00 + G-68 HEAT SINK + DIN RAIL
10 A · MOSFET
Input
4-32 VDC, 9-32mA
Output
5-1200VDC, 10Amp
Body insulation
2.5kV for 1min
View specifications →

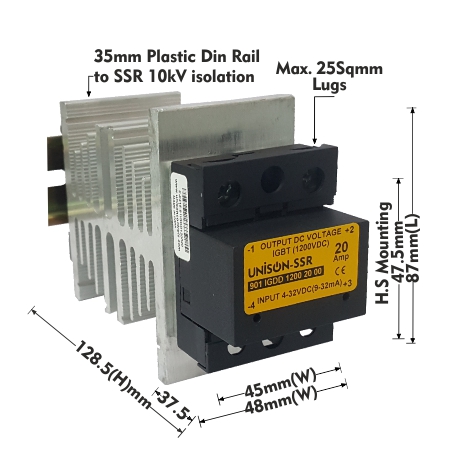

UNI 901 IGDD 1200 20 00 + B-48 HEAT SINK + DIN RAIL
20 A · MOSFET
Input
4-32 VDC, 9-32mA
Output
5-1200VDC, 20Amp
Body insulation
2.5kV for 1min
View specifications →
