Model 901
Phase Angle Controller by Pot
4
Models
25–50 A
Load current
UNI 901 4T POT 40 FULL + G-68 HEAT SINK + DIN RAIL
40 A · Phase angle
- Input
- 100KE/250KE/470KE POT (SINGLE TURN)
- PIV
- 800, I²T : 880A²S for 9.6mS
- I/P. to O/P. insulation
- 2.5kV for 1min

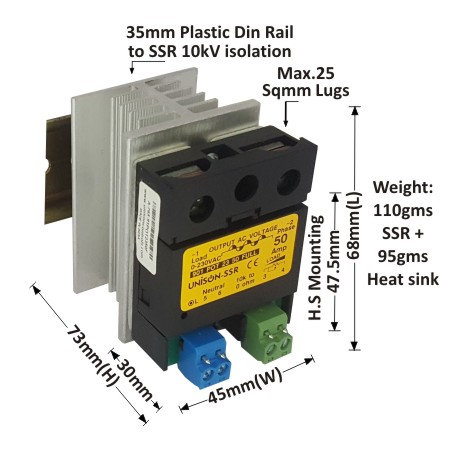

UNI 901 POT 23 50 FULL + G-68 HEAT SINK + DIN RAIL
50 A · Phase angle
- Input
- 10KE POT (SINGLE TURN), Green LED
- Output
- 0 to 230 VAC (47-63 Hz), 50 Amp
- PIV
- 1200, I²T : 3000A²S for 9.6mS

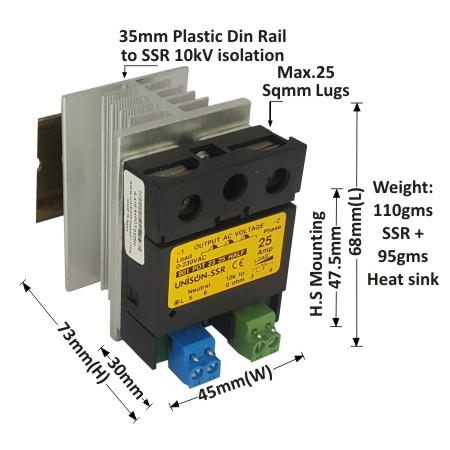

UNI 901 POT 23 25 HALF + G-68 HEAT SINK + DIN RAIL
25 A · Phase angle
- Input
- 10KE POT (SINGLE TURN)
- Output
- 0 to 230 VAC (47-63 Hz), 25 Amp
- PIV
- 800, I²T : 340A²S for 9.6mS

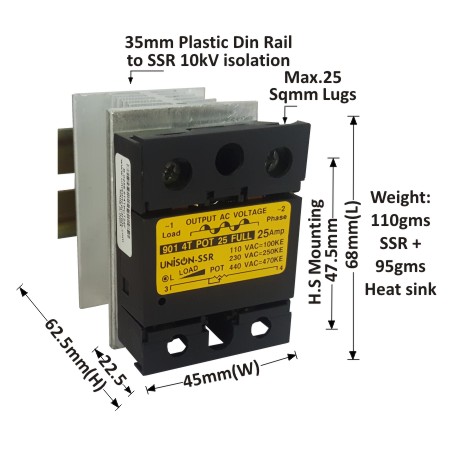

UNI 901 4T POT 25 FULL + G-68 HEAT SINK + DIN RAIL
25 A · Phase angle
- Input
- 100KE/250KE/470KE POT (SINGLE TURN)
- PIV
- 800, I²T : 340A²S for 9.6mS
- I/P. to O/P. insulation
- 2.5kV for 1min
