Model 901 · UL approved
Random DC to AC Solid State Relay
6
Models
25–200 A
Load current
UNI 901 RDA 48 25 01 AL5 + DIN RAIL
25 A · Random
- Input
- 4-32VDC / 4-16mA
- Output
- 24-480VAC (47-63 Hz), 25 Amp
- PIV
- 800, I²T : 340A²S for 9.6mS

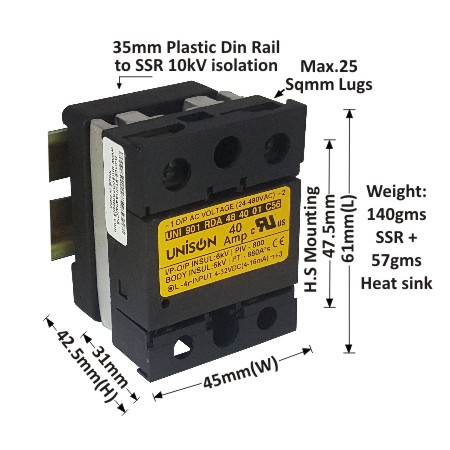

UNI 901 RDA 48 40 01 C56 + DIN RAIL
40 A · Random
- Input
- 4-32VDC / 4-16mA
- Output
- 24-480VAC (47-63 Hz), 40 Amp
- PIV
- 800, I²T : 880A²S for 9.6mS

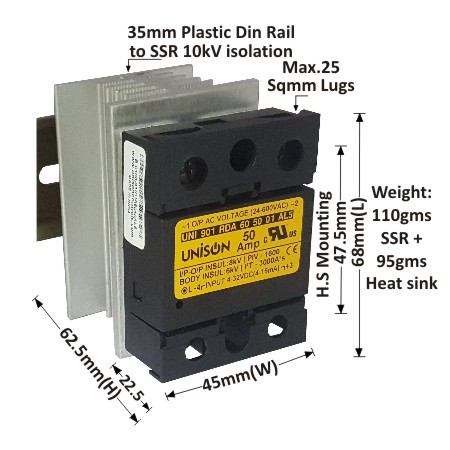

UNI 901 RDA 60 50 01 AL5 + G-68 HEAT SINK + DIN RAIL
50 A · Random
- Input
- 4-32VDC / 4-16mA, Green LED indication
- O/P
- 24-600VAC (47-63 Hz), 50 Amp
- PIV
- 1600, I²T : 3000A²S for 9.6mS

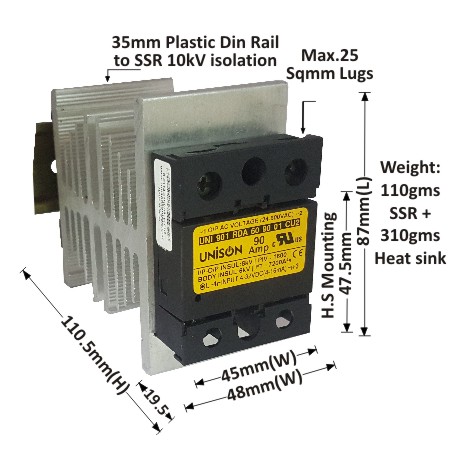

UNI 901 RDA 60 90 01 CU2 + B-48 HEAT SINK + DIN RAIL
90 A · Random
- Input
- 4-32VDC / 4-16mA, Green LED indication
- Output
- 24-600VAC (47-63 Hz), 90 Amp
- PIV
- 1600, I²T : 7200A²S for 9.6mS

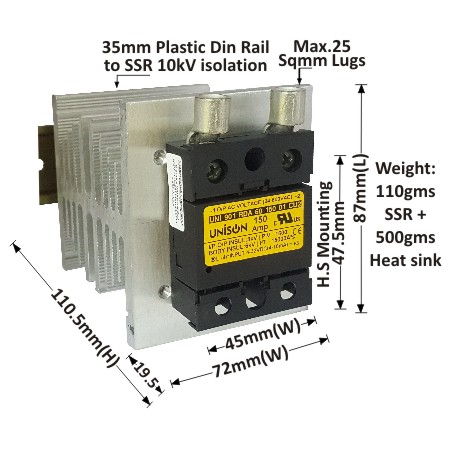

UNI 901 RDA 60 150 01 CU2 + B-72 HEAT SINK + DIN RAIL
150 A · Random
- Input
- 4-32VDC / 4-16mA, Green LED indication
- Output
- 24-600VAC (47-63 Hz), 150 Amp
- PIV
- 1600, I²T : 15000A²S for 9.6mS

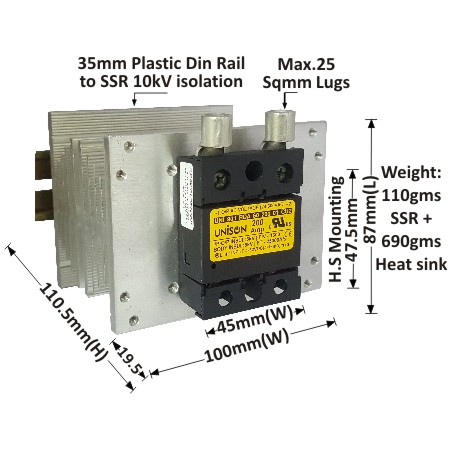

UNI 901 RDA 60 200 01 CU2 + A-100 HS + DIN RAIL
200 A · Random
- Input
- 4-32VDC / 4-16mA, Green LED indication
- Output
- 24-600VAC (47-63 Hz), 200 Amp
- PIV
- 1600, I²T : 25000A²S for 9.6mS
