Model 901 · UL approved
Zero-cross AC to AC Solid State Relay
6
Models
25–200 A
Load current
UNI 901 ZAA 48 25 28 AL5 + DIN RAIL
25 A · Zero-cross
- Input
- 100-280VAC / 4-12mA
- Output
- 24-480VAC (47-63 Hz), 25 Amp
- PIV
- 800, I²T : 340A²S for 9.6mS

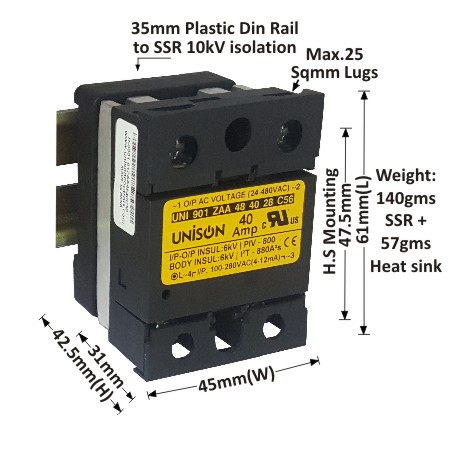

UNI 901 ZAA 48 40 28 C56 + DIN RAIL
40 A · Zero-cross
- Input
- 100-280VAC / 4-12mA,
- Output
- 24-480VAC (47-63 Hz), 40 Amp
- PIV
- 800, I²T : 880A²S for 9.6mS

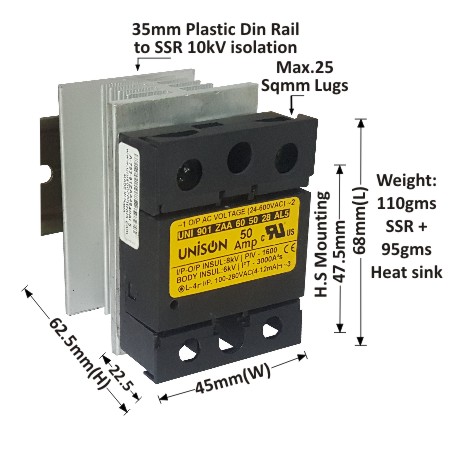

UNI 901 ZAA 60 50 28 AL5 + G-68 HEAT SINK + DIN RAIL
50 A · Zero-cross
- Input
- 100-280VAC / 4-12mA, Green LED indication
- Output
- 24-600VAC (47-63 Hz), 50 Amp
- PIV
- 1600, I²T : 3000A²S for 9.6mS

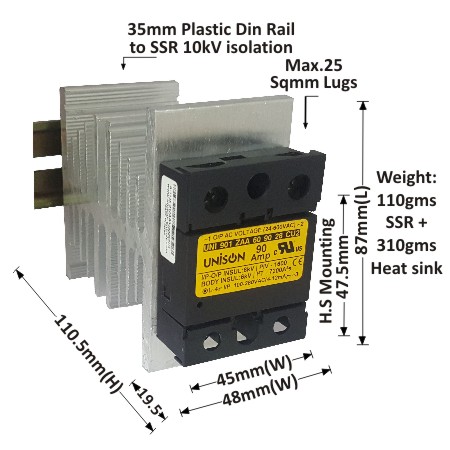

UNI 901 ZAA 60 90 28 CU2 + B-48 HEAT SINK + DIN RAIL
90 A · Zero-cross
- Input
- 100-280VAC / 4-12mA, Green LED indication
- Output
- 24-600VAC (47-63 Hz), 90 Amp
- PIV
- 1600, I²T : 7200A²S for 9.6mS

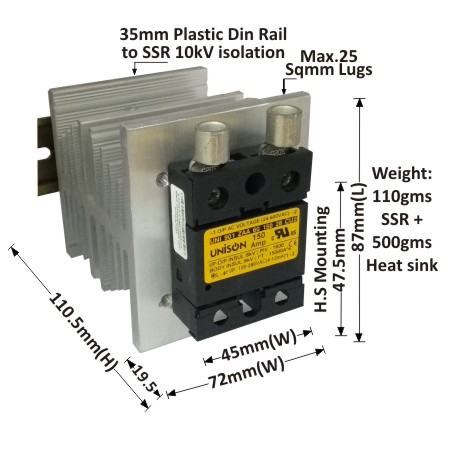

UNI 901 ZAA 60 150 28 CU2 + B-72 HEAT SINK + DIN RAIL
150 A · Zero-cross
- Input
- 100-280VAC / 4-12mA, Green LED indication
- Output
- 24-600VAC (47-63 Hz), 150 Amp
- PIV
- 1600, I²T : 15000A²S for 9.6mS

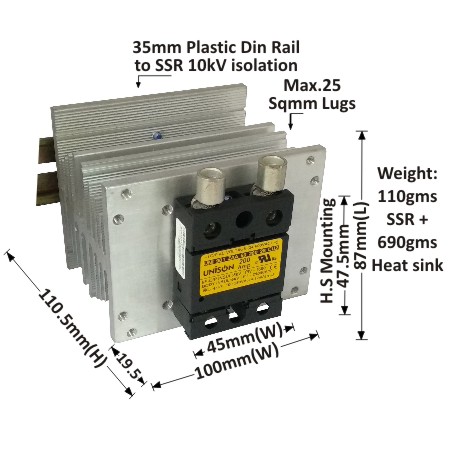

UNI 901 ZAA 60 200 28 CU2 + A-100 HEAT SINK + DIN RAIL
200 A · Zero-cross
- Input
- 100-280VAC / 4-12mA, Green LED indication
- Output
- 24-600VAC (47-63 Hz), 200 Amp
- PIV
- 1600, I²T : 25000A²S for 9.6mS
