Model 905 3-Phase
3-PHASE AC to AC Solid State Relay
3
Models
25–40 A
Load current
UNI 905 3PH ZAA 48 50 28 + A-100 HEAT SINK + DIN RAIL
40 A · Zero-cross
- Input
- 80-280VAC, 5-20mA, Plug in Type
- Input LED Indication
- Green
- 3PhaseOutput
- 24-480VAC (47-63 Hz), 40Amp

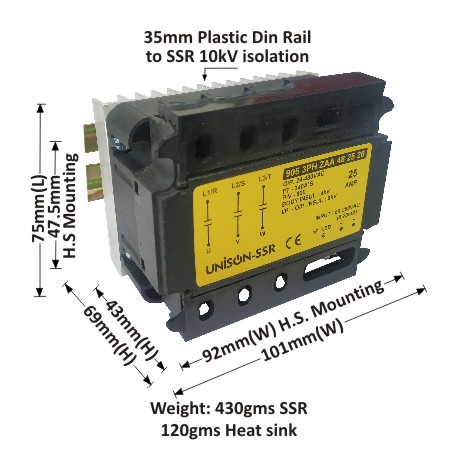

UNI 905 3PH ZAA 48 25 28 + E-75 HEAT SINK + DIN RAIL
25 A · Zero-cross
- Input
- 80-280VAC, 5-20mA, Plug in Type
- Input LED Indication
- Green
- 3Phase Output
- 24-480VAC (47-63 Hz), 25Amp

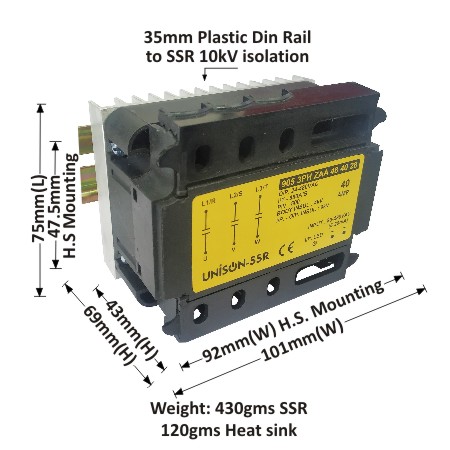

UNI 905 3PH ZAA 48 40 28 + E-75 HEAT SINK + DIN RAIL
40 A · Zero-cross
- Input
- 80-280VAC, 5-20mA, Plug in Type
- Input LED Indication
- Green
- 3PhaseOutput
- 24-480VAC (47-63 Hz), 40Amp
