Model 905 3-Phase
3-PHASE DC to AC Solid State Relay
3
Models
25–50 A
Load current
UNI 905 3PH ZDA 48 25 01 + E-75 HEAT SINK + DIN RAIL
25 A · Zero-cross
- Input
- 4-32VDC, 15-20mA, Plug in Type
- Input LED Indication
- Green
- 3 Phase Output
- 24-480VAC (47-63 Hz), 25 Amp

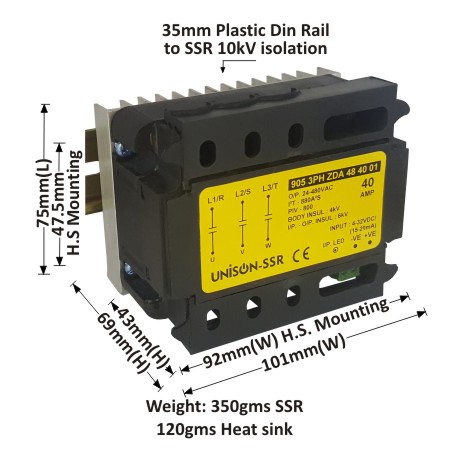

UNI 905 3PH ZDA 48 40 01 + E-75 HEAT SINK + DIN RAIL
40 A · Zero-cross
- Input
- 4-32VDC, 15-20mA, Plug in Type
- Input LED Indication
- Green
- 3 Phase Output
- 24-480VAC (47-63 Hz), 40 Amp

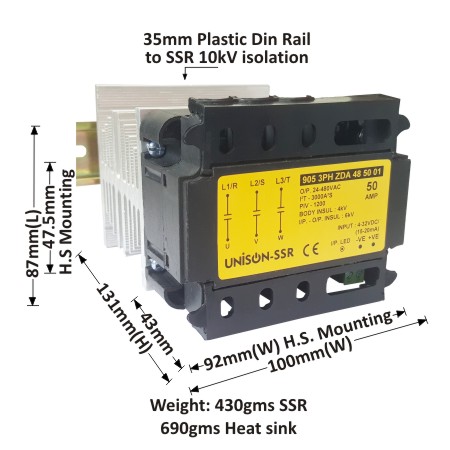

UNI 905 3PH ZDA 48 50 01 + A-100 HEAT SINK + DIN RAIL
50 A · Zero-cross
- Input
- 4-32VDC, 15-20mA, Plug in Type
- Input LED Indication
- Green
- 3PhaseOutput
- 24-480VAC (47-63 Hz), 50Amp
