Model 905 3-Phase
3-PHASE Forward DC to AC Over Load Solid State Relay
3
Models
5–15 A
Load current
UNI 905 3FW DOLSPZDA 48 05 01 + E-75 HEAT SINK + DIN
5 A
- Output
- 24-480 VAC (47-63 Hz), 05Amp
- PIV
- 1200Vpk, I²T : 880A²S for 9.6mS

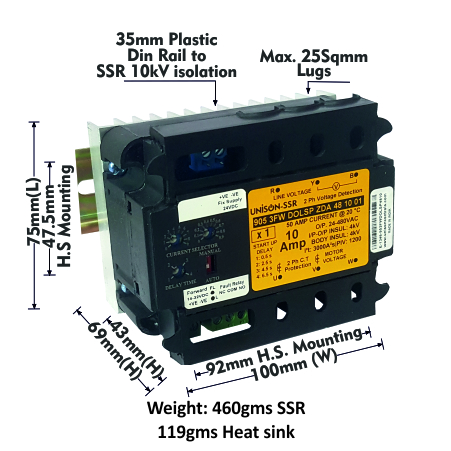

UNI 905 3FW DOLSPZDA 48 10 01 + E-75 HEAT SINK + DIN
10 A
- Output
- 24-480 VAC (47-63 Hz), 10Amp
- PIV
- 1200Vpk, I²T : 3000A²S for 9.6mS

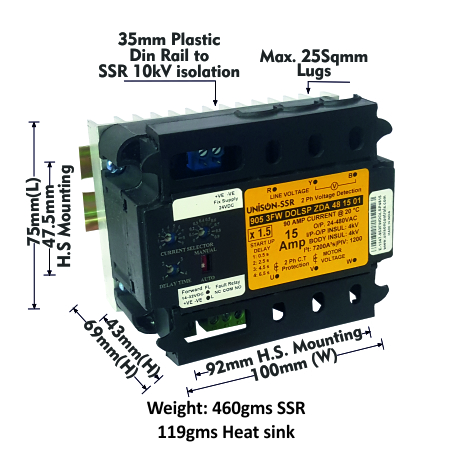

UNI 905 3FW DOLSPZDA 48 15 01 + E-75 HEAT SINK + DIN
15 A
- Output
- 24-480 VAC (47-63 Hz), 15Amp
- PIV
- 1200Vpk, I²T : 7200A²S for 9.6mS
