Thyristor Controllers · UL approved
Burst Fire Control Solid State Relay
3
Models
50–200 A
Load current
UNI 901 MCBUR 60 50 420 AL5 1S + G-68 HEAT SINK + DIN RAIL
50 A · Burst fire
- Input
- 4 to 20mA/51E or 0-10VDC/1ME, Green LED
- Output
- 24-600VAC (47-63 Hz), 50 Amp
- Input Fix Supply
- 24VDC/30mA

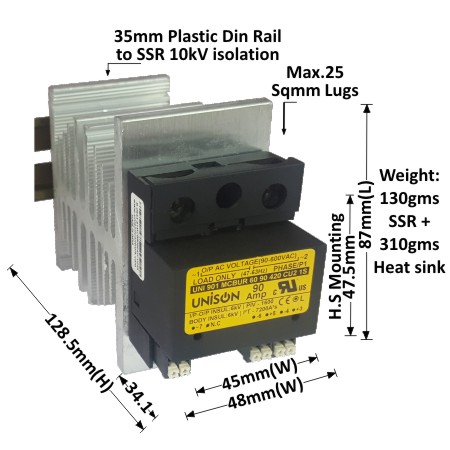

UNI 901 MCBUR 60 90 420 CU2 1S + B-48 HEAT SINK + DIN RAIL
90 A · Burst fire
- Input
- 4 to 20mA/51E or 0-10VDC/1ME, Green LED
- Output
- 24-600VAC (47-63 Hz), 90 Amp
- Input Fix Supply
- 24VDC/30mA

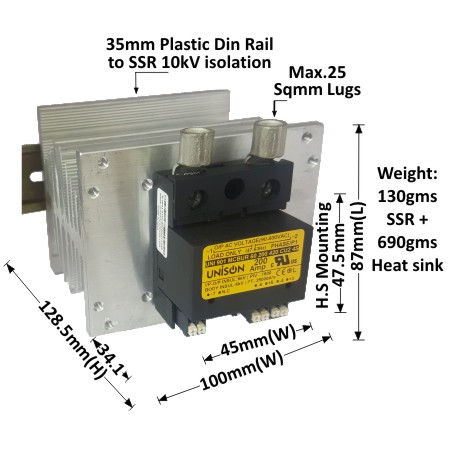

UNI 901 MCBUR 60 200 420 CU2 1S + A-100 HEAT SINK + DIN RAIL
200 A · Burst fire
- Input
- 4 to 20mA/51E or 0-10VDC/1ME, Green LED
- Output
- 24-600VAC (47-63 Hz), 200 Amp
- Input Fix Supply
- 24VDC/30mA
