Thyristor Controllers
Thyristor Controller, SCR Power Controller, Phase Angle Controller Manufacturer
3
Models
50–200 A
Load current
UNI 901 MCPHT 48 50 420 AL5 + G-68 HEAT SINK + DIN RAIL
50 A · Phase angle
- Input
- 4 to 20mA/51E or 0-10VDC/1ME, Green LED
- Input Fix Supply
- 24VDC/30mA
- O/P. Auto Detection
- 90-480 VAC & 47-63Hz, 50 Amp

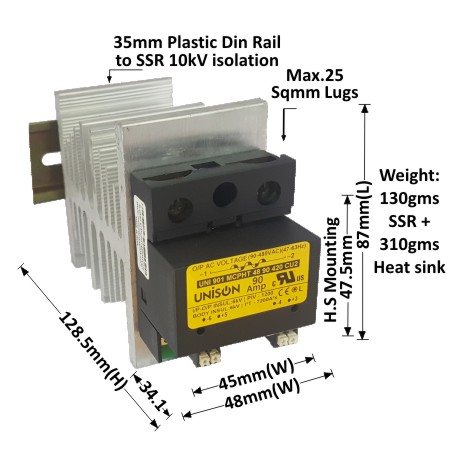

UNI 901 MCPHT 48 90 420 CU2 + B-48 HEAT SINK + DIN RAIL
90 A · Phase angle
- Input
- 4 to 20mA/51E or 0-10VDC/1ME, Green LED
- Input Fix Supply
- 24VDC/30mA
- O/P. Auto Detection
- 90-480 VAC & 47-63Hz, 90 Amp

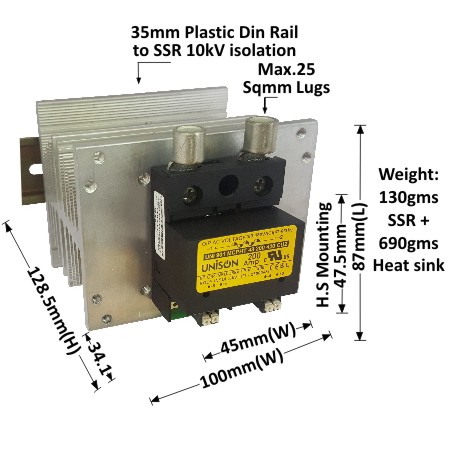

UNI 901 MCPHT 48 200 420 CU2 + A-100 HEAT SINK + DIN RAIL
200 A · Phase angle
- Input
- 4 to 20mA/51E or 0-10VDC/1ME, Green LED
- Input Fix Supply
- 24VDC/30mA
- O/P. Auto Detection
- 90-480 VAC & 47-63Hz, 200 Amp
